APP Bitumen Membrane (Atactic Polypropylene Bitumen Membrane) is one of the most widely used waterproofing materials in modern construction. Engineered for superior durability and resistance to UV radiation, APP membranes provide long-term protection for roofs, foundations, tunnels, bridges, and various civil engineering structures. Their combination of thermoplastic polymers and high-grade bitumen creates a flexible, heat-resistant, and weather-proof membrane suitable for both hot and temperate climates.
What Is APP Bitumen Membrane?
An APP Bitumen Membrane is a polymer-modified bituminous waterproofing sheet made by blending atactic polypropylene (APP) with bitumen, reinforced with a non-woven polyester or fiberglass mat. This modification improves elasticity, thermal stability, and aging resistance—making it ideal for long-term waterproofing solutions.
APP (Atactic Polypropylene) is a thermoplastic polymer derived from propylene monomer. When blended with bitumen, it enhances the membrane’s performance by providing higher temperature tolerance and better flow resistance compared to oxidized bitumen.
Chemical and Technical Information
CAS Number: 9003-07-0 (for Polypropylene)
HS Code: 6807.10.00 (for Bitumen or Asphalt-based Roofing and Waterproofing Membranes)
Other Names:
Atactic Polypropylene Bitumen Membrane
Polymer-Modified Bitumen Membrane
APP-Modified Waterproofing Sheet
Torch-on Bitumen Membrane
How APP Bitumen Membrane Is Produced
The production of APP Bitumen Membrane involves a specialized process to achieve consistent mechanical and thermal properties:
Selection of Raw Materials:
High-grade bitumen and atactic polypropylene polymer are selected based on penetration and softening point requirements.Blending Process:
The bitumen is heated in a reactor and mixed with the APP polymer under controlled temperature and agitation. This step ensures uniform dispersion and polymer modification of the bitumen matrix.Reinforcement Layering:
A reinforcement core—typically polyester non-woven fabric or fiberglass mat—is passed through the molten APP-bitumen mixture to achieve strong bonding and dimensional stability.Sheet Formation:
The coated sheet is then passed through rollers to achieve uniform thickness (commonly 2 mm, 3 mm, 4 mm, or 5 mm).Cooling and Finishing:
The hot sheets are cooled, trimmed, and coated with mineral granules, sand, or film depending on the application type.Packaging:

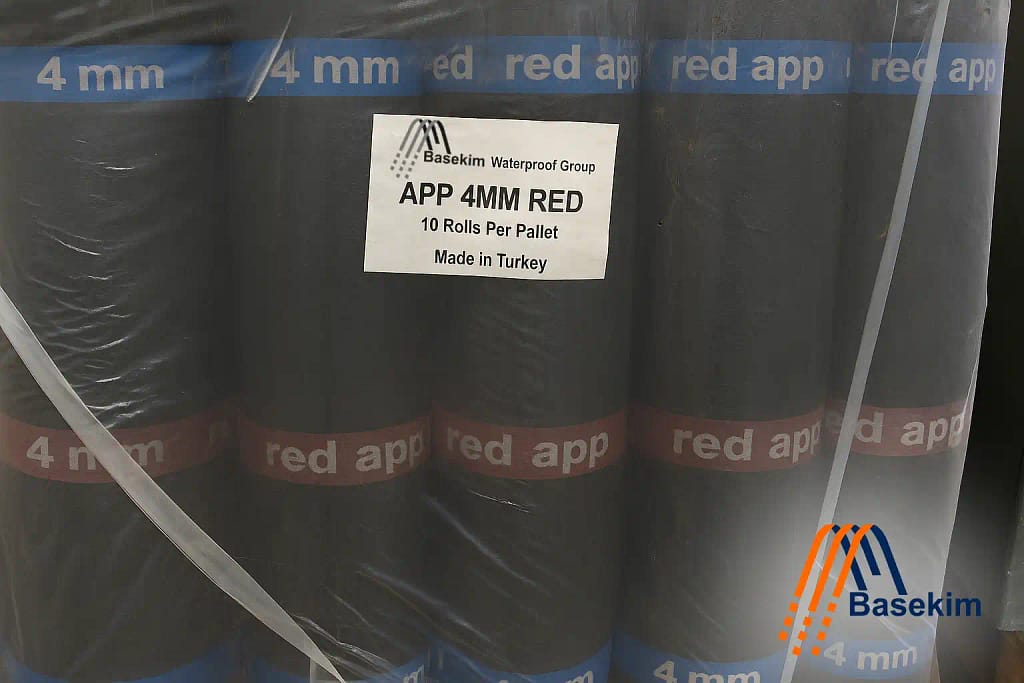

The finished APP Bitumen Membrane rolls are wrapped with polyethylene film to prevent sticking and are typically supplied in rolls of 1 × 10 meters.
Technical Properties
| Property | Typical Value |
|---|---|
| Thickness | 2 mm – 5 mm |
| Reinforcement | Polyester / Fiberglass |
| Softening Point | ≥ 150 °C |
| Cold Flexibility | ≤ −5 °C |
| Tensile Strength | ≥ 700 N / 5 cm |
| Elongation at Break | ≥ 40 % |
| Heat Resistance | No flow at 120 °C |
| Water Absorption | < 0.2 % |
| Roll Size | 1 m × 10 m |
Usage of APP Bitumen Membrane
The APP Bitumen Membrane is known for its excellent waterproofing performance, making it suitable for a wide range of civil and industrial applications:
1. Roofing Systems
Used as a torch-on waterproofing membrane for both flat and sloped roofs. It provides long-term resistance to ultraviolet radiation and weathering.
2. Basement and Foundation Waterproofing
APP membranes prevent water seepage in below-grade structures such as basements, tunnels, and retaining walls, ensuring structural protection and durability.
3. Bridges and Viaducts
Applied as an intermediate waterproofing layer under asphalt pavement in bridge decks to protect against chloride and moisture infiltration.
4. Industrial and Commercial Buildings
Used for waterproofing of warehouses, factories, and office complexes where mechanical durability and thermal stability are crucial.
5. Car Parks and Terraces
Its strong adhesion and flexibility make it suitable for exposed areas like open terraces, balconies, and parking decks.
Specialty Usage of APP Bitumen Membrane
The specialty usage of APP Bitumen Membrane lies in its heat and UV resistance, making it ideal for hot climates and regions with strong solar exposure such as the Middle East, Africa, and Southern Europe.
Thermal Stability: Maintains structural integrity even under continuous heat exposure up to 120–150 °C.
UV Protection: Can be installed on exposed surfaces without additional coating.
Torch-on Application: Easy to install using a propane torch, creating a monolithic waterproof barrier.
Low Maintenance: Long lifespan of 15–25 years with minimal maintenance required.
Chemical Resistance: Resists most atmospheric pollutants, salts, and mild acids.
Advantages of APP Bitumen Membrane
Excellent UV and Aging Resistance – Designed to withstand sunlight and temperature fluctuations without cracking.
Superior Waterproofing – Ensures total impermeability to water and moisture.
Flexible at Low Temperatures – Retains elasticity, preventing cracks in cold weather.
High Tensile Strength – Provides durability and puncture resistance.
Ease of Application – Simple torch-on or hot-air welding installation.
Compatibility – Can be used over concrete, metal, or wood substrates.
Cost-Effective – Offers an economical waterproofing solution with long service life.
Grades and Finishes
APP Bitumen Membranes are available in various grades and surface finishes depending on the project requirement:
| Grade | Surface Finish | Application |
|---|---|---|
| APP Plain Finish | PE Film | Underlayer for multi-layer waterproofing |
| APP Sand Finish | Fine Sand | Foundations and buried surfaces |
| APP Mineral Finish | Mineral Slate / Granule | Exposed roof surfaces |
| APP Aluminum Coated | Aluminum Foil | Reflective protection against UV radiation |
Application Process
Surface Preparation:
Clean the substrate to remove dust, oil, or debris. Apply a bituminous primer to improve adhesion.Heating and Application:
Unroll the membrane and heat the lower face using a propane torch until it becomes tacky.Bonding:
Press and roll the membrane firmly onto the surface to remove air pockets. Overlap adjacent sheets by at least 10 cm.Sealing and Finishing:
Seal overlaps using the torch to ensure a continuous waterproof layer. Protect the membrane from mechanical damage.
Storage and Handling
Store rolls upright in a cool, dry area away from direct sunlight.
Avoid stacking more than two layers of rolls.
Do not bend or fold the rolls.
Recommended storage temperature: below 40 °C.
Environmental and Safety Aspects
APP Bitumen Membranes are environmentally safe and non-toxic. During installation, proper ventilation should be ensured when using an open flame. The material is recyclable and contributes to sustainable construction practices by extending the life of structures.
Conclusion
The APP Bitumen Membrane stands as a reliable, cost-effective, and high-performance waterproofing solution widely used in industrial and commercial construction. Its superior heat and UV resistance, flexibility, and durability make it a preferred choice in demanding environments. From roofs and foundations to bridges and basements, APP Bitumen Membrane ensures long-lasting protection and structural integrity across a wide range of applications.
FAQ 1: What is the difference between APP and SBS Bitumen Membranes?
Answer:
APP Bitumen Membranes are modified with Atactic Polypropylene, which makes them more resistant to heat and UV rays — ideal for hot climates.
SBS Bitumen Membranes, modified with Styrene-Butadiene-Styrene, are more flexible in cold temperatures and better suited for colder environments.
FAQ 2: Can APP Bitumen Membrane be painted or coated?
Answer:
Yes. While APP membranes often have a mineral or aluminum surface that doesn’t require extra coating, they can be painted with reflective or protective coatings to enhance UV resistance and reduce surface temperature.
FAQ 3: How long does an APP Bitumen Membrane last?
Answer:
When properly installed and maintained, APP Bitumen Membrane typically lasts 15 to 25 years. Lifespan depends on factors like exposure, climate conditions, and installation quality.
FAQ 4: What are the ideal temperature and conditions for installing APP Bitumen Membrane?
Answer:
Installation is best performed in dry weather at temperatures above 10°C (50°F). Surfaces must be clean and free from moisture. Cold or humid conditions can reduce adhesion and compromise waterproofing performance.
FAQ 5: Is APP Bitumen Membrane environmentally friendly?
Answer:
Yes. APP Bitumen Membranes are non-toxic, asbestos-free, and recyclable. They also extend the service life of buildings, reducing material waste and contributing to sustainable construction practices.
